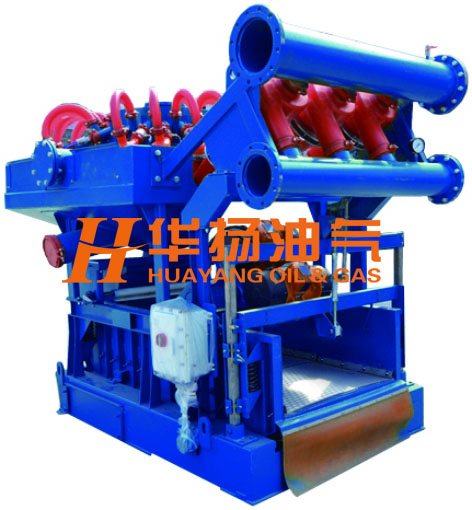

Mud Cleaner
source：西安華揚油氣設(shè)備有限公司 time：2017-11-10
| Model | HYQJ200×1S-100×4N | HYQJ200×2S-100×8N | HYQJ250×2S-100×12N | HYQJ250×3S-100×20N |
| Treatment Capacity | 60m³ | 120m³ | 240m³ | 320m³ |
|
Desander Cyclone Specs |
8in | 10in | ||
|
Desander Cyclone Qty |
1nos | 2nos | 2nos | 3nos |
|
Desilter Cyclone Specs |
4in | |||
|
Desilter Cyclone Qty |
5nos | 8nos | 12nos | 20nos |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | HYZS60/N/A | HYZS752/N/A | HYZS752/N/A | HYZS703/N/A |
| Dimension | 1510×1160X2000mm | 1835×1230×1810mm | 1835×1230×1810mm | 2419×2150×2147mm |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
Features and Benefits：
1.Integration of desander desilter and shale shaker,compact design for structure,small volume.
2.Selected high-chromium iron lined polyurethane or pure polyurethane,long service life.
3.High manganese steel alloy for screen basket,with high strength,lengthen the service life of screen basket.
4.Adopted international brand vibration motor,Martin or OLI motor.
5.Hot treatment for screen basket,heavy anti-corrosive coating for surface,guarantee the service life of shale shaker.
6.High G force vibration strength(adjustable),can meet the separation of high viscosity and specific gravity drilling mud.
7.Fixation of plate tension and wedge are both available for screen.
8.電.International brand Schneider or Siemens.
